Overview

DWF-35 outdoor AC cable distribution box is widely used in the power distribution network system in recent years in the cable engineering equipment, its main characteristics are two-way door, the use of butt bushing as the connection busbar, with the advantages of small length, clear cable arrangement, three-core cable does not need a large span crossing, etc. The cable glands used comply with DIN47636 standards.

Generally, the rated current of 630A bolt is used to fix the connected cable gland.

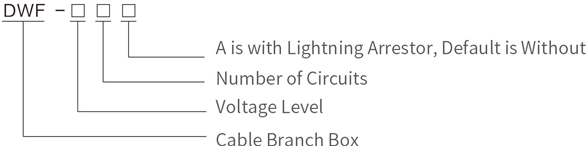

Model Meaning

Normal Use Environment

Ambient temperature: Air temperature: +40°C, low temperature -30°C

Wind speed: equivalent to 34m/s (not more than 700Pa)

Humidity: The average daily relative humidity is not more than 95%, and the average monthly relative humidity is not more than 95%

Shockproof: Horizontal acceleration is not more than 0.4m/s, vertical acceleration is not more than 0.15m/s

Installation site inclination: not more than 3°

Installation environment: The surrounding air should not be obviously polluted by corrosive and flammable gases, water vapor, etc.,

There is no violent vibration at the installation site.

If you order this product beyond the above conditions, please consult with us.

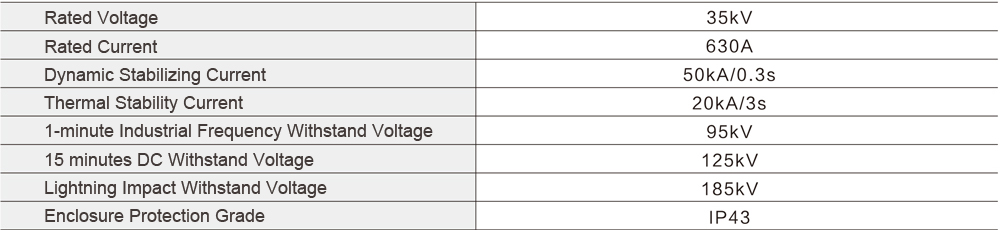

Technical Parameters
