Overview

Huabian is designed by the Chinese people to optimize the compact structure by learning from the excellent heat dissipation performance of the United States and the perfect protection function of the European variant, which solves the problem of lack of protection and poor heat dissipation of the European variant, and the current market promotion prospects.

Features

• Huabian is divided into three parts: high-voltage chamber, low-voltage chamber and transformer, which are arranged according to the "L" shape or "product" shape;

• Huabianli transformer can only use oil-immersed transformer, not dry-type transformer;

• The body and heat sink of Huabian transformer are open and exposed outside the box, the heat dissipation effect is good, and the rest of the live intervals are sealed in an independent compartment, each room is isolated into an independent interval with a partition, and there is a lower manhole in the box to facilitate installation and maintenance;

• The box body is made of cold-rolled steel plate or stainless steel plate, the inner and outer surfaces are smooth, there is no rust, coating peeling and bump damage, and the coating layer is firm and uniform, without obvious contrast and reflection;

• The top cover of the box is equipped with a rain-proof sealing cover plate and a rain-proof eaves, and the double-layer structure of the box top cover can prevent heat radiation;

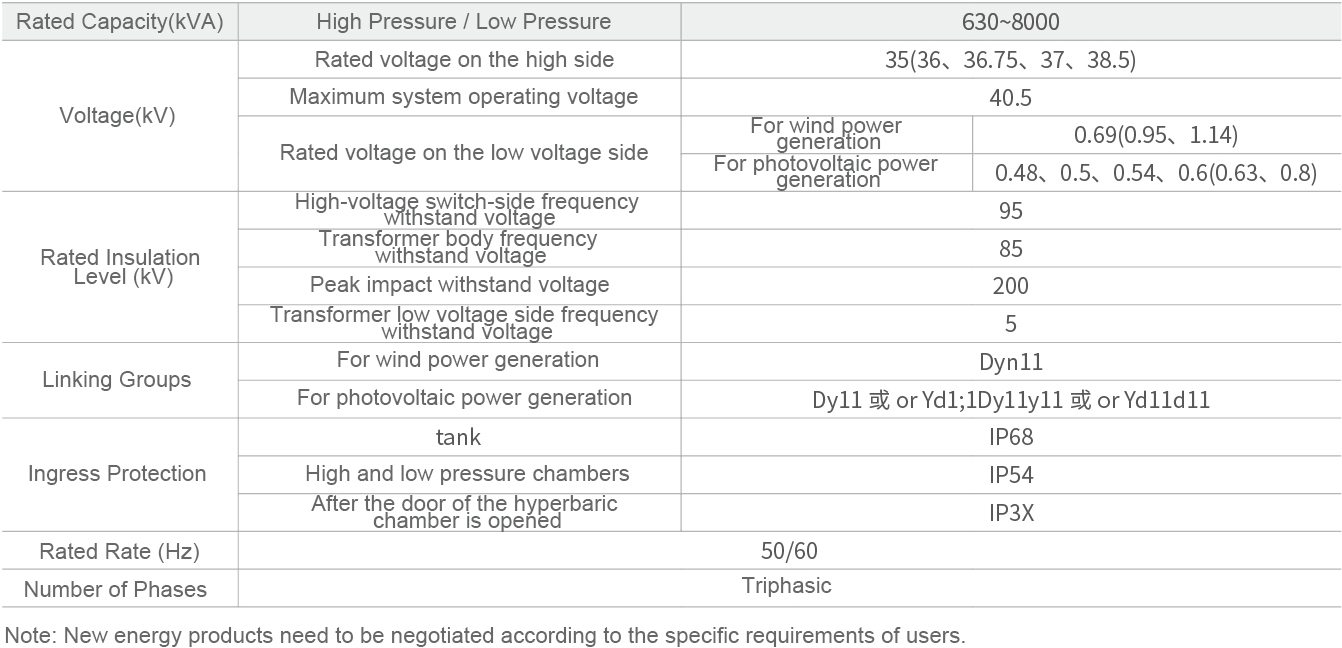

Main Technical Parameters:

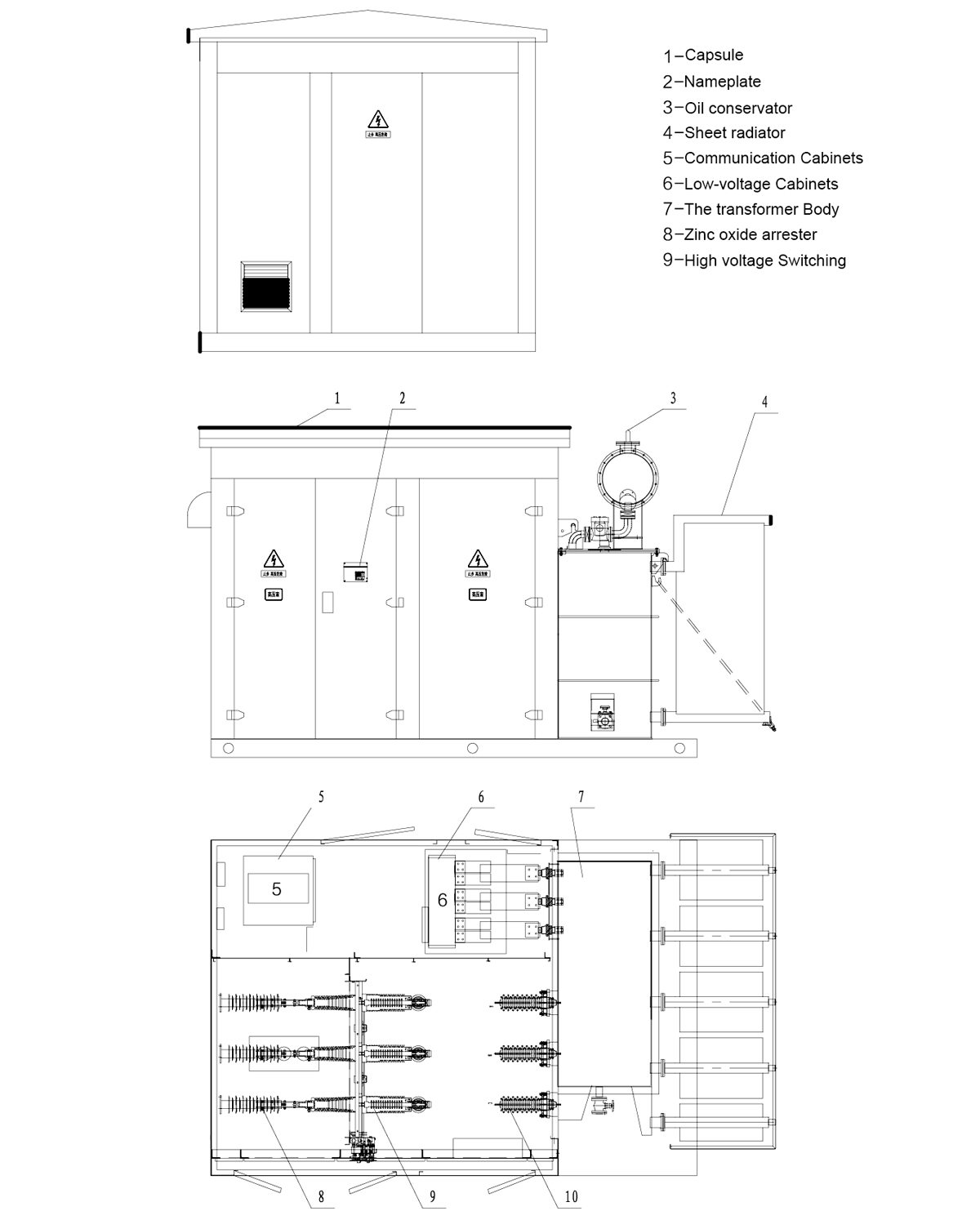

Exterior Dimension Drawing
