Product Introduction

The KYN28A-24 (SDK1-24) armored removable AC metal switchgear (hereinafter referred to as switchgear) produced by the company is suitable for indoor three-phase 50/60Hz power systems with a rated voltage of 24kV, mainly used in power plants, substations, industrial and mining enterprises and high-rise buildings, as a way to receive and distribute electric energy and control, protect and monitor circuits.

KYN28A-24(SDK1-24) Armoured removable AC metal switchgear has a variety of functions to prevent misoperation, including preventing moving handcarts with loads, preventing grounding switches from closing the position circuit breaker, preventing live grounding switches, and preventing accidental entry into live compartments. The switchgear is equipped with VS1 and VN2 series mid-mounted high-voltage AC vacuum circuit breakers and sealed vacuum switches with excellent performance. The secondary circuit of the switchgear is equipped with reliable control and protection elements, and the bus adopts the insulation means of heat shrinkable insulation material or epoxy coating, optimizes the electrical shape, and the cabinet structure is compact, and the switchgear is a power distribution equipment with stable technology, stable performance, reasonable structure, convenient use, safety and reliability.

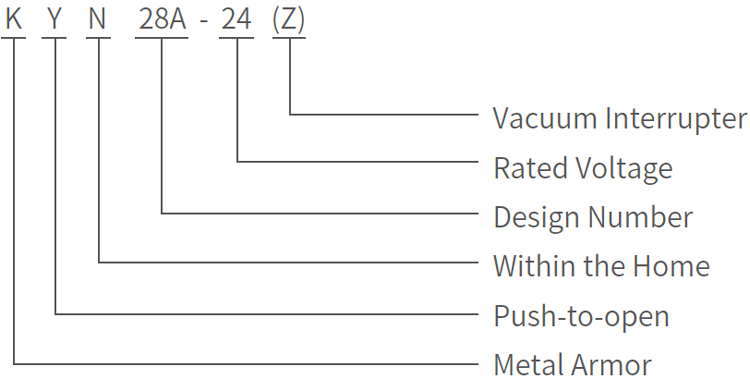

Model Meaning

Normal Use Environment

◇ Environmental conditions: temperature +40°C, low temperature -15°C, and the average value measured within 24 hours does not exceed 35°C;

◇ The temperature conditions are as follows: the average daily relative humidity does not exceed 95%, the average monthly relative humidity does not exceed 90%, the average daily water vapor pressure does not exceed 2.2kPa, and the average monthly water vapor pressure does not exceed 1.8kPa;

◇ The altitude does not exceed 1000m;

◇ The surrounding air is not visibly polluted by dust, smoke, corrosive and flammable gases, vapors or salt spray;

◇ Vibration or ground motion from the outside of the switchgear and control equipment is negligible;

◇ The amplitude of electromagnetic interference induced in the secondary system shall not exceed 1.6kV.
