Product Introduction

European-style cable branch box is widely used in the power distribution network system in recent years in the cable engineering equipment, its main characteristics are two-way door opening, the use of butt bushing as the connection busbar, with the advantages of small length, clear cable arrangement, three-core cable does not need a large span crossing, etc. The cable glands used comply with DIN47636 standards.

Generally, the rated current of 630A bolt is used to fix the connection cable gland.

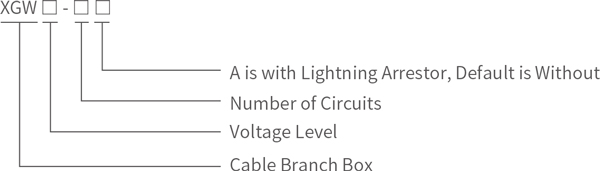

Model Meaning

Normal Use Environment

◇ Ambient temperature: air temperature: +40°C, low temperature -30°C;

◇ Wind speed: equivalent to 34m/s (not more than 700Pa);

◇ Humidity: the average daily relative humidity is not more than 95%, and the average monthly relative humidity is not more than 95%;

◇ Shockproof: horizontal acceleration is not more than 0.4m/s2, vertical acceleration is not more than 0.15m/s2;

◇ Installation site inclination: no more than 3°;

◇ Installation environment: The surrounding air should not be obviously polluted by corrosive and flammable gases, water vapor, etc., and there should be no violent vibration at the installation site;

◇ If you order this product beyond the above conditions, please consult with our company.

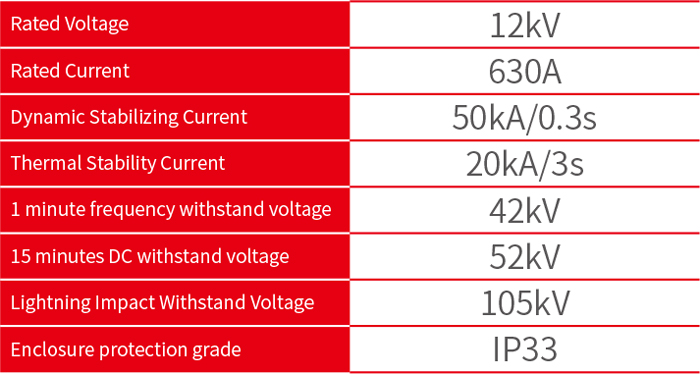

Main Technical Parameters:

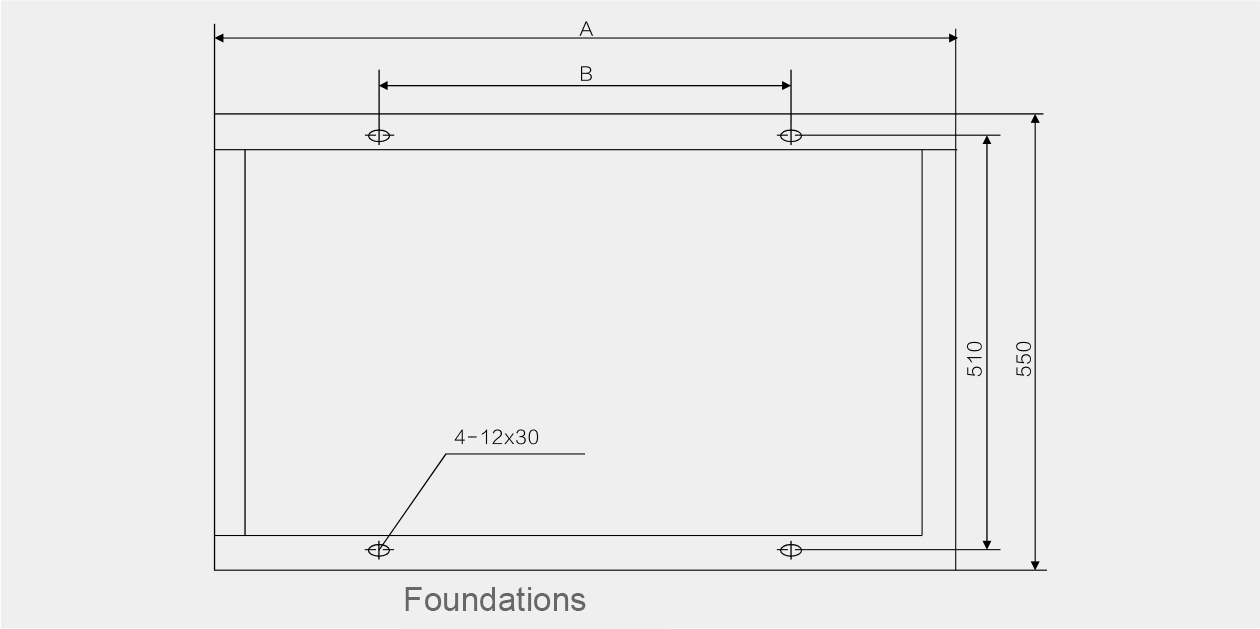

Installation Dimension Drawing

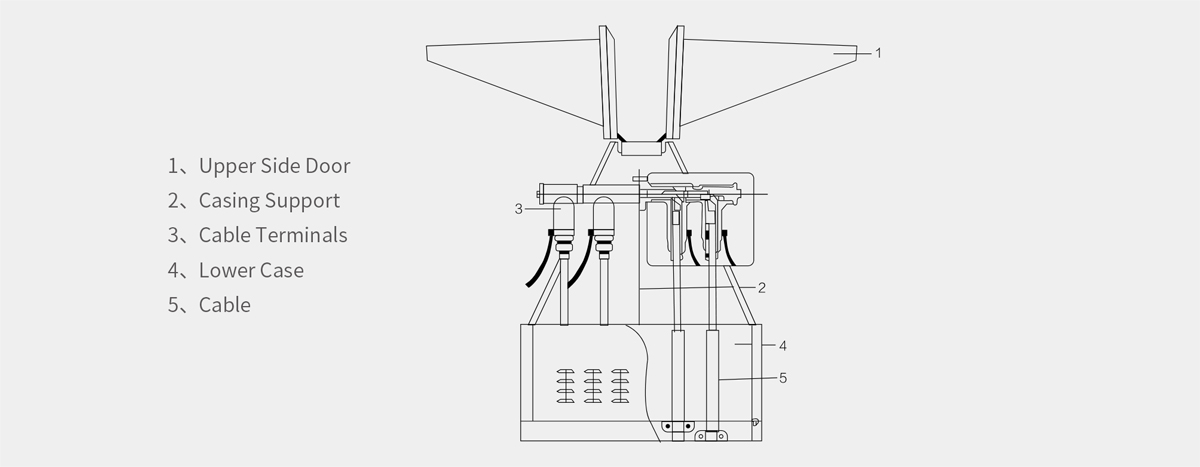

Structural Description

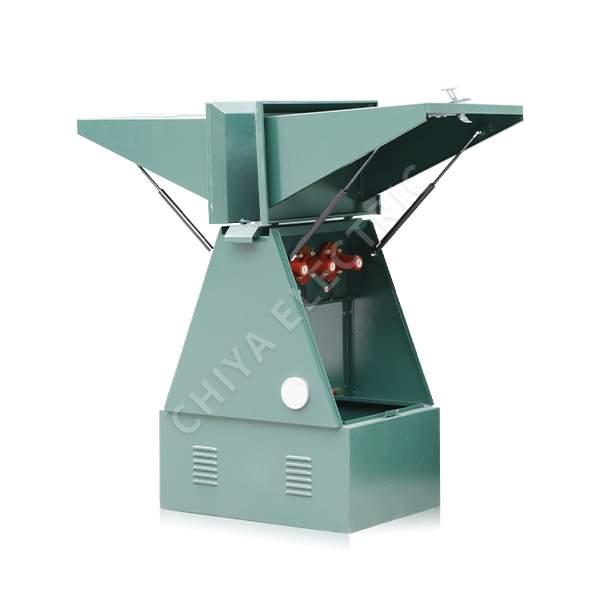

XGW-12 European cable branch box is outdoor design, fully sealed structure, fully insulated, dustproof, moisture-proof, flood-resistant, corrosion-resistant, and environmentally adaptable. The cabinet is protected by IP33. The cable gland bracket is made of stainless steel, and the shell is made of stainless steel plate or cold-rolled plate spraying.

The cable gland bracket is located in the upper part of the breakout box and is used to support the sleeve, which is used to secure the cable gland or, in the case of surge arresters, at the end of the cable glands. In addition, a short-circuit fault indicator and a live indicator are housed in the distribution box. The live parts of the main circuit in the box are insulated by prefabricated plug-in cable terminations. The cable partition is located in the lower part of the box and has a cable retaining clip and a ground terminal. The box layout is reasonable, the size is small, the structure is compact, the appearance is beautiful and generous, the installation is simple, and the maintenance is free.
