Product Introduction

Since the 50s of the 20th century, the development of medium-voltage switchgear has gone through the stages of open type, box type, metal closed type, etc., and there is no problem in meeting the functional use requirements of the equipment, and the product has long been serialized and fully covered by the scope of use. The rapid development of small size, maintenance-free, highly modular, safe and reliable environmentally friendly gas-insulated ring main unit can realize the remote monitoring, control and management of the power system distribution network, and realize the needs of power grid optimization, power safety, power management, energy saving and consumption reduction;

HBN-12 energy-saving and environmentally-friendly fully insulated ring main unit introduces production equipment and manufacturing technology to achieve localized production, greatly reduces manufacturing costs, shortens the delivery cycle, and is well received by users after its launch.

Features

◇ Functional composite and integrated products

The inflatable shell of the switchgear is made of high-quality thick 2.5mm stainless steel plate welded by laser to ensure the airbox sealing reliability, high mechanical strength, good corrosion resistance, and the protection level of the inflatable shell reaches IP67; the airbox is equipped with an explosion-proof diaphragm, which can effectively prevent the damage caused to people and equipment when the air pressure is too high; all the conductive parts are enclosed in the airbox, which can not only avoid the influence of external environmental factors, but also improve the reliability of operation, so that it has maintenance-free (or less maintenance) and at the same time meet the requirements of volume miniaturization. The switch adopts three-station (isolation + grounding) + vacuum interrupter, which is a mature configuration method at present, especially suitable for the current power grid operation and maintenance needs.

◇ Environmentally friendly and pollution-free

The insulating medium of HBN-12 energy-saving and environmentally-friendly fully insulated ring main unit is zero-level dry air (purchased) or 99.99% pure N2 in accordance with GB/T 8979-2008, and the leakage of gas will not have any impact on the external environment, and there is no need for any recycling.

◇ Perfect mechanical interlocking

The operation panel of HBN-12 energy-saving and environmentally friendly fully insulated ring main unit has a perfect five-proof mechanical interlocking function, and the interlocking functions have been configured internally, please operate in the order of the operation instructions when operating, which is very convenient to use.

◇ Flexible expansion design

HBN-12 energy-saving and environmentally-friendly fully insulated ring main unit is a modular design, which can realize a variety of unit combinations through special bus connectors, and meet the complex and diverse power distribution design schemes in various parts of China.

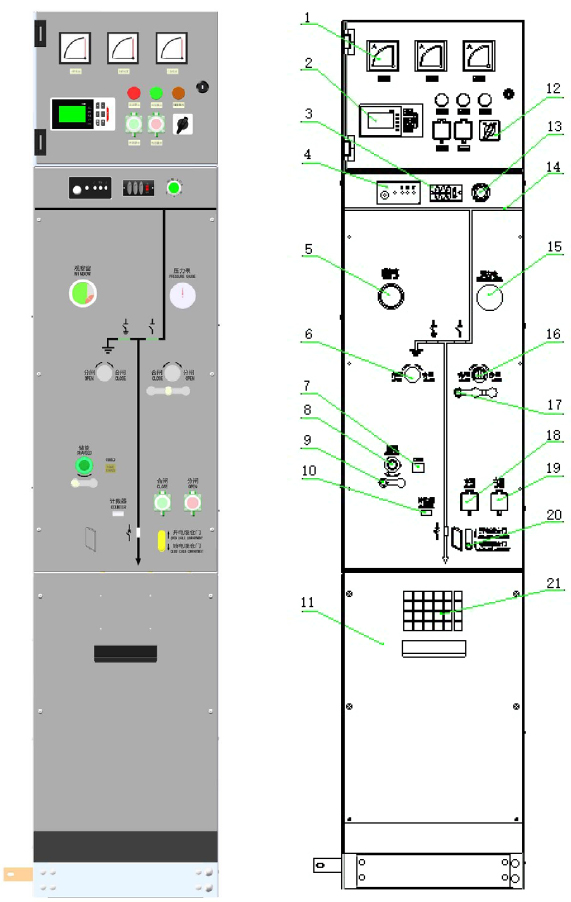

Product Structure

1. Ammeter

2. Microcomputer integrated protection device

3. Capacitive live indicator

The live indicator shows whether the sleeve is live or not, and the three sockets below the indicator can be used for the secondary nuclear phase. The live indicator sets the switch button, which effectively prolongs the service life.

4. Fault indicator

Detect the current in the power supply line, and an alarm indication will appear when there is a short-circuit fault current or ground fault current.

5. Isolate the observation window

Through this viewing window, you can see the opening and closing of the grounding switch and whether the disconnector is closing or opening

6. Grounding switch operation hole

The operation shaft of the grounding switch can be rotated by the operating handle, and the opening and closing operations can be carried out on the ground

7. Main switch energy storage indication

Observing the energy storage indication of the main switch can grasp the energy storage situation of the main switch operating mechanism

8. Energy storage operation hole

Use the operating handle to rotate the shaft of the energy storage mechanism, so that the main switch operating mechanism can store energy.

9. Energy storage operation hole padlock device

The padlock plate linked to the padlock device covers the energy storage operation hole, and the operating handle can be inserted into the operation hole only by toggling the padlock device. A padlock can be configured when not in operation to prevent misoperation by unauthorized personnel.

10. Counter indication

Indicates the cumulative number of closing and opening of the main switch operating mechanism.

11. Cable room door

12. Remote/in-place conversion switch

The remote/local conversion switch realizes the control direction between the control of the location of the device and the background control
