Product Introduction

The SRM16-40.5(35kV) fully enclosed and fully insulated insulated ring main unit provides 10 standard combinations, which can meet the application requirements of most 35~40.5kV power distribution networks. The SRM16-40.5 (35kV) is a compact switchgear that offers almost any combination of selected function units.

The SRM16-40.5(35kV) fully enclosed and fully insulated inflatable ring main unit with interface and user interface provides a complete switching application solution in the 35~40.5kV secondary distribution network.

The stainless steel air chamber of the SRM16-40.5 (35kV) fully enclosed and fully insulated insulated ring main unit is filled with SF6 gas, which seals the live parts from the switch and isolates them from the outside world. This hermetically sealed system makes the internal switches and live parts unaffected by changes in the external environment, resulting in high reliability, personnel safety and virtually maintenance-free.

Place of Use

◇ Compact secondary substation

◇ Small industrial and mining enterprises

◇ Wind power plants

◇ Hotels, shopping malls, office buildings, commercial centers, etc

◇ C- Load switch unit

◇ D- Direct cable connection unit

◇ De- Direct cable connection unit with grounding switch

◇ F- Load Switch- Fuse Combined Electrical Unit

◇ V- Vacuum circuit breaker unit

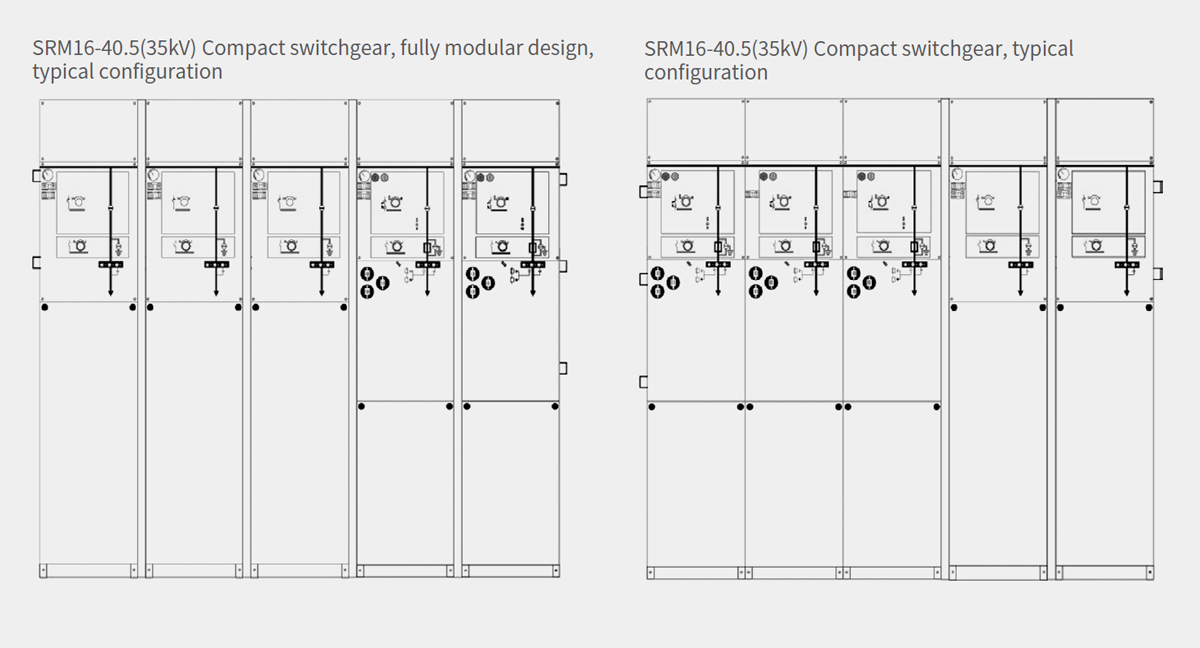

SRM16-40.5(35kV) Application
